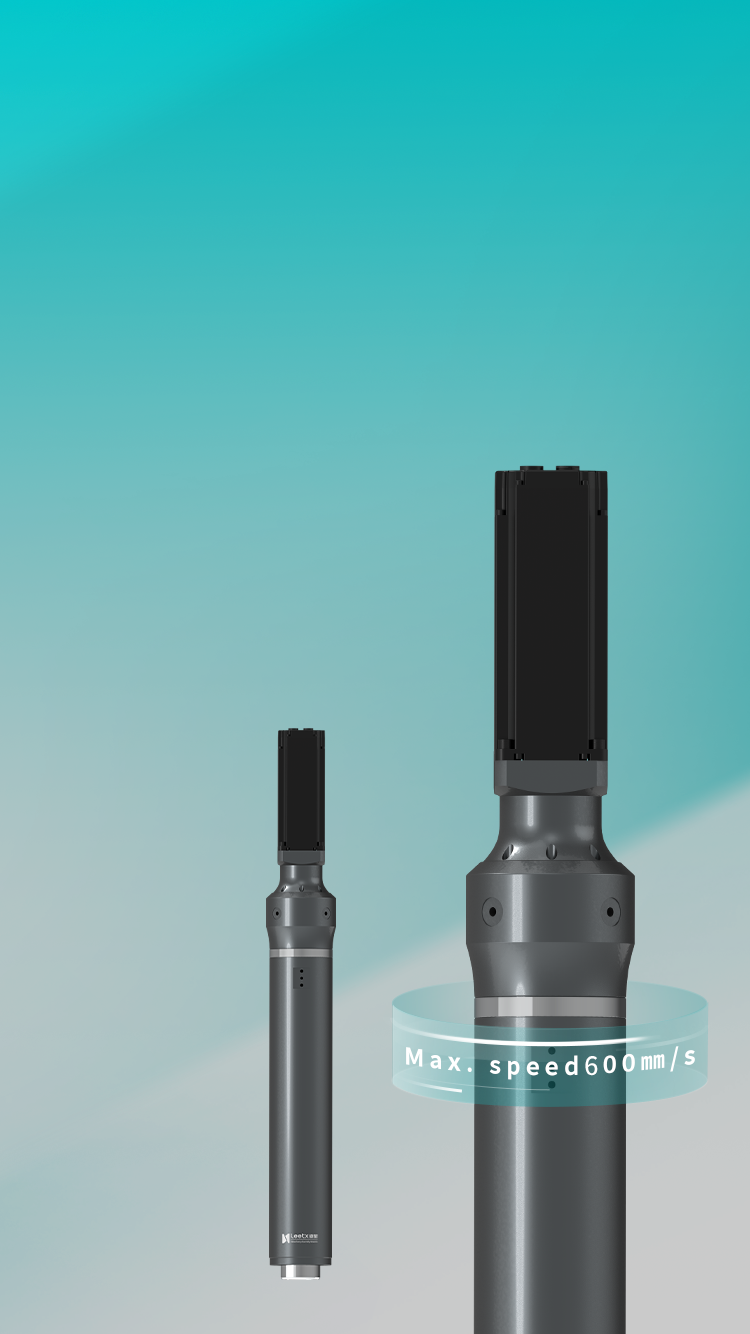

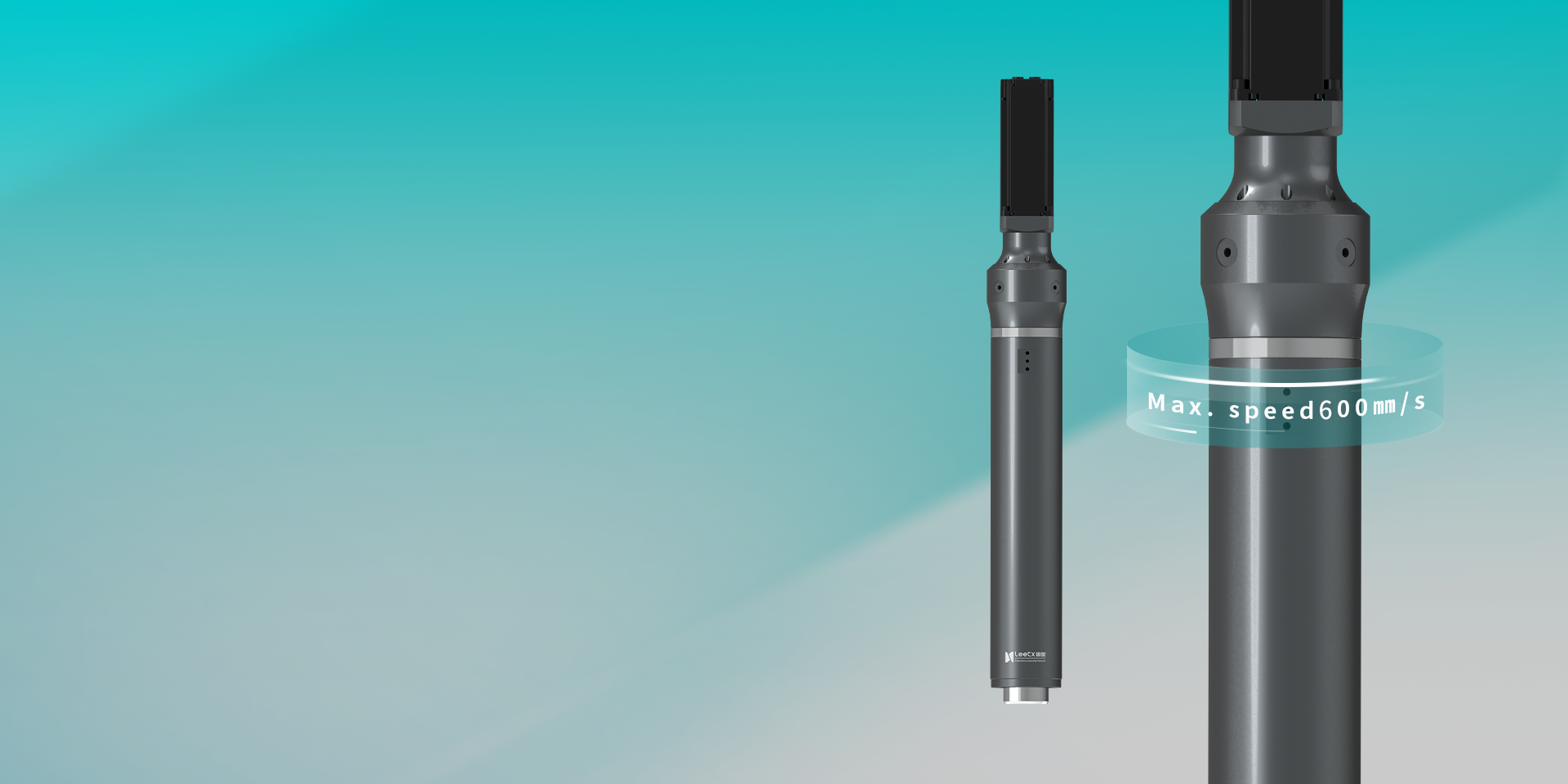

High-speed operation
Travel speeds up to 600 mm/s for production lines where cycle time is critical.
Real-time control loop
250 µs control cycle with live force measurement and in-process curve evaluation.
Precise positioning
Repeatability of 0.01 mm as standard; down to 0.002 mm with an optional external displacement sensor.
Inflection point detection
Automatic identification of process transitions for mid-cycle triggering and quality gating.
High-accuracy force measurement
Integrated absolute encoder and force sensor delivering 1% system accuracy, 24-bit resolution, and 10 kHz sampling.
Adaptive deceleration control
Leetx-developed algorithm adjusts approach speed to part characteristics, keeping force overshoot within 1%.
Servo Press System
