Fully self-developed motion control for radial and orbital riveting. ±0.01mm accuracy, multi-mode control, and global service — built for safety-critical assemblies in automotive, new energy, and electronics.
Progressive rivet engagement with 1%-accuracy real-time force feedback to prevent material cracking.
Auto Contact-Point Detection
Pressure-based datum detection to control riveting depth and eliminate part height variations.
Springback Compensation
Constant hold pressure at target position or force to offset material springback in real time.

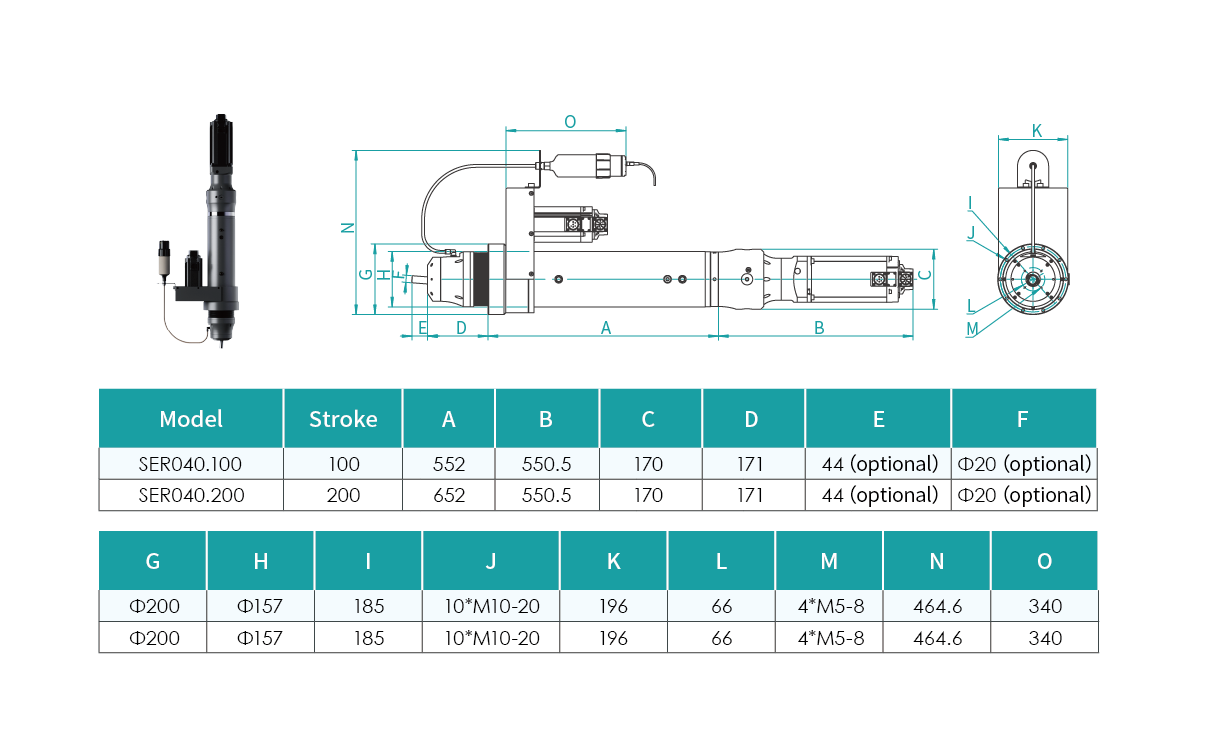

Structure

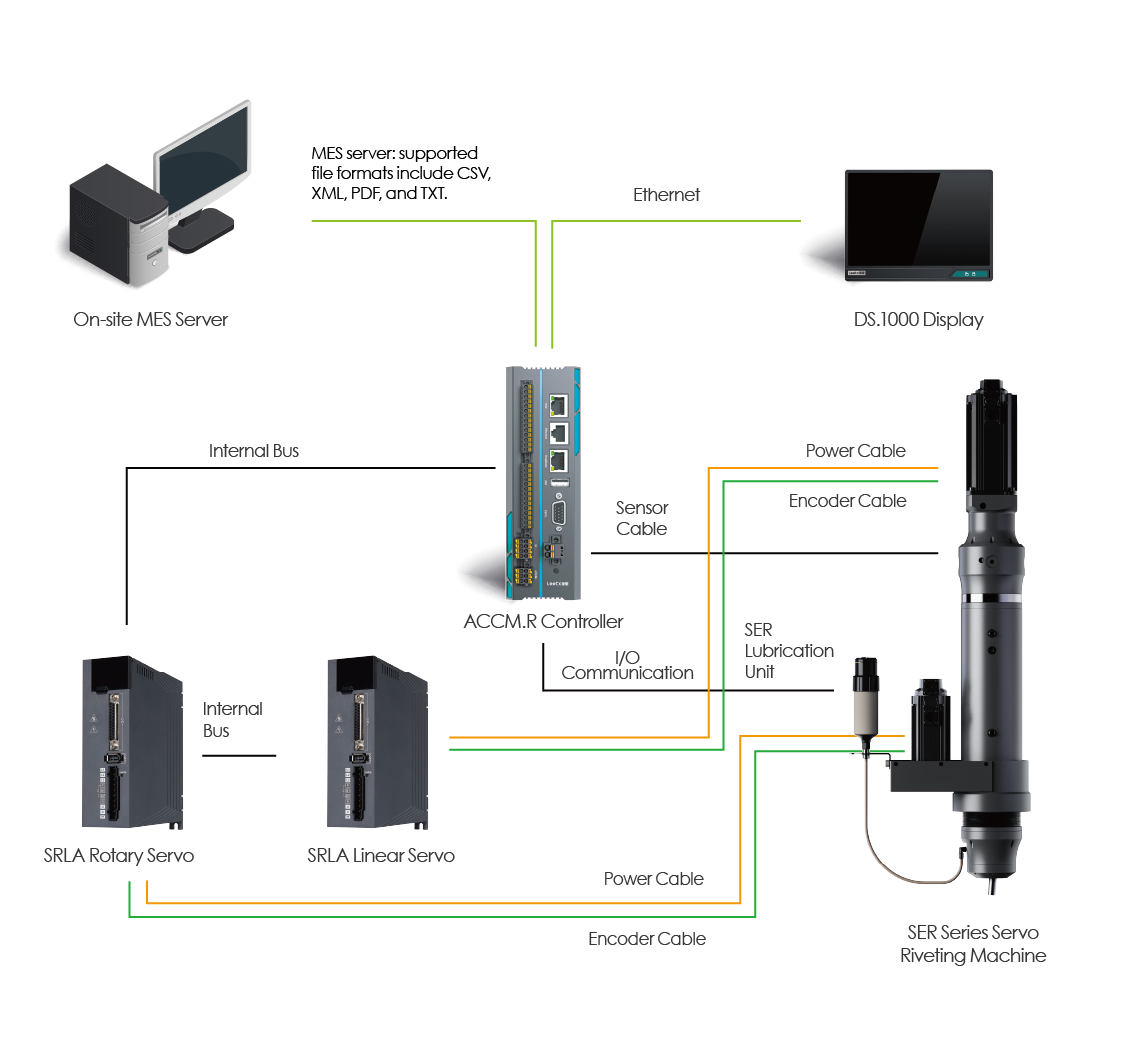

System framework
Related applications
Motor vehicle
Auto parts
Consumer Electronics
White goods
SER Servo Riveting System
SER Servo Riveting System
